Sidebar Tools

Apart from Annotation, the view has a sidebar that contains functionalities as described below:

Reload

User clicks reload to load the PDF file again.

Thumbnail

Displays the page thumbnails.

Color Separation

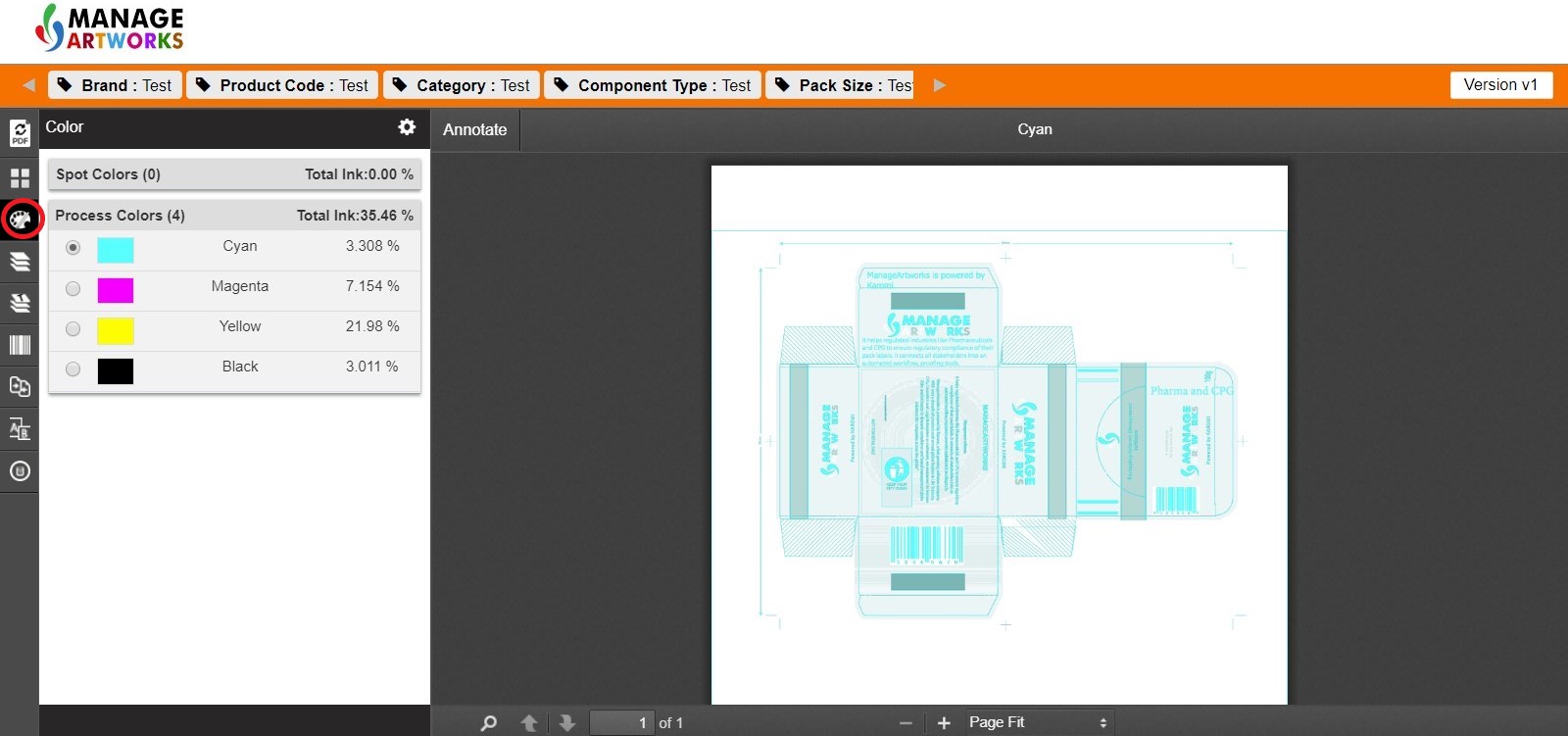

Displays colours in the artwork. Spot and process colours are classified separately. User can click each colour to separate and display that colour in the artwork.

Layer Separation

Displays layers in the artwork. Layers are classified as Visible and Hidden Layers. User can click each layer to separate and display that layer in the artwork.

Font Separation

Displays fonts in the artwork with font size in mm, font name and letters using that font in the artwork.

Barcode

Displays information about barcode on the PDF file, if any. Viewer reads barcodes in the artwork from left to right and also has the capability to generate Reverse Read Value (right to left). For the Reverse Read Value, the system identifies the barcode which is the direction-reversed version of the original barcode. In the screenshot, the original barcode value (Pharmacode) is 4077. The Reverse Read Value is 3006. The system identifies both barcodes regardless of their placement in the artwork and displays corresponding information. In addition to Pharmacode, Type, Class, Direction, Value, Reverse Read Value, Quality and Confidence, the system displays parameters such as Scan Grade, Magnification etc.

Image Compare

Allows the user to digitally compare (pixel to pixel compare) two files and identify deviations. The user can generate a report based on results of comparison. Discussed in detail in a separate section in this help.

Text Compare

Allows the user to compare texts and identify deviations. Discussed in detail in a separate section in this help.

Metadata

Displays metadata of the associated file.
